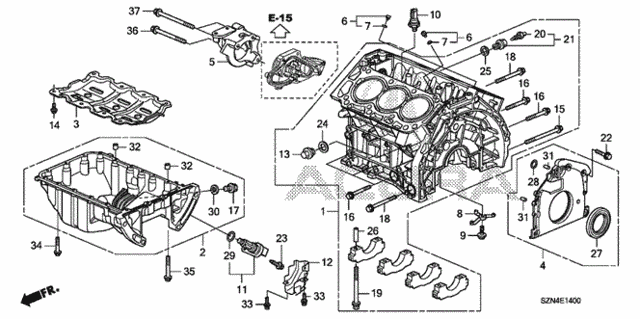

Cylinder Block - Oil Pan for 2011 Acura ZDX

Cylinder Block - Oil Pan for 2011 Acura ZDX #0
1
1
2
2
3
3
4
4
5
5
6
6
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
16
16
16
16
17
17
18
18
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
31
31
32
32
32
32
33
33
33
33
34
34
35
35
36
36
37
37
No.
Part # / Description / Price
Price
1
11000RK2A02 - Engine: BLOCK ASSY., CYLINDER for Acura Image
Block Assembly, Cylinder
11000-RK2-A02
Acura Acura
$2,697.91 CAD
$2,697.91 CAD
2
112005MHA00 - Engine: PAN, OIL for Acura Image
Pan, Oil
11200-5MH-A00
Acura Acura
$379.26 CAD
$379.26 CAD
3
11221R70A10 - Engine: PLATE, BAFFLE for Acura Image
Plate, Baffle
11221-R70-A10
Acura Acura
$83.45 CAD
$83.45 CAD
4
11300R70A00 - Engine: CASE ASSY., OIL SEAL for Acura Image
Case Assembly, Oil Seal
11300-R70-A00
Acura Acura
$175.74 CAD
$175.74 CAD
5
11910RDJA00 - Engine: BRACKET, ENGINE SIDE MOUNTING for Acura Image
Bracket, Engine Side Mounting
11910-RDJ-A00
Acura Acura
$135.77 CAD
$135.77 CAD
6
15140P8AA00 - Engine: ORIFICE ASSY., OIL CONTROL for Acura Image
Orifice Assembly, Oil Control
15140-P8A-A00
Acura Acura
$20.49 CAD
$20.49 CAD
7
15142P8AA00 - Engine: O-RING (8.8X2.4) for Acura Image
O-Ring (8.8X2.4)
15142-P8A-A00
Acura Acura
$6.10 CAD
$6.10 CAD
8
15280R70A00 - Engine: BODY, OIL JET for Acura Image
Body, Oil Jet
15280-R70-A00
Acura Acura
$34.35 CAD
$34.35 CAD
9
15290RJA000 - Engine: BOLT, OIL JET for Acura Image
Bolt, Oil Jet
15290-RJA-000
Acura Acura
$61.67 CAD
$61.67 CAD
10
30530RNAA01 - Engine: SENSOR, KNOCK for Acura Image
Sensor, Knock
30530-RNA-A01
Acura Acura
$113.33 CAD
$113.33 CAD
11
37500R40A01 - Engine: SENSOR ASSY., CRANK for Acura Image
Sensor Assembly, Crank
37500-R40-A01
Acura Acura
$234.27 CAD
$234.27 CAD
12
37503R70A00 - Engine: COVER, CRANK SENSOR for Acura Image
Cover, Crank Sensor
37503-R70-A00
Acura Acura
$16.69 CAD
$16.69 CAD
13
90001PM3003 - Engine: BOLT, DRAIN PLUG (28MM) for Acura Image
Bolt, Drain Plug (28MM)
90001-PM3-003
Acura Acura
$46.16 CAD
$46.16 CAD
14
90001RKG000 - Engine: BOLT-WASHER (6X15) for Acura Image
Bolt-Washer (6X15)
90001-RKG-000
Acura Acura
$8.17 CAD
$8.17 CAD
15
90006P8AA01 - Engine: BOLT-WASHER (10X109) for Acura Image
Bolt-Washer (10X109)
90006-P8A-A01
Acura Acura
$17.12 CAD
$17.12 CAD
16
90008P8AA01 - Engine: BOLT-WASHER (10X60) for Acura Image
Bolt-Washer (10X60)
90008-P8A-A01
Acura Acura
$16.28 CAD
$16.28 CAD
17
90009R70A00 - Engine: BOLT, PLUG (14MM) for Acura Image
Bolt, Plug (14MM)
90009-R70-A00
Acura Acura
$27.24 CAD
$27.24 CAD
18
90009P8AA01 - Engine: BOLT-WASHER (10X80) for Acura Image
Bolt-Washer (10X80)
90009-P8A-A01
Acura Acura
$18.14 CAD
$18.14 CAD
19
90014RCAA01 - Engine: BOLT-WASHER (11X105) for Acura Image
Bolt-Washer (11X105)
90014-RCA-A01
Acura Acura
$7.61 CAD
$7.61 CAD
20
90030PH7000 - Engine: BOLT, BREATHING for Acura Image
Bolt, Breathing
90030-PH7-000
Acura Acura
$36.84 CAD
$36.84 CAD
21
90040P8AA01 - Engine: BOLT, DRAIN PLUG for Acura Image
Bolt, Drain Plug
90040-P8A-A01
Acura Acura
$45.27 CAD
$45.27 CAD
22
90052RCJA00 - Engine: BOLT, SPECIAL (6X22) for Acura Image
Bolt, Special (6X22)
90052-RCJ-A00
Acura Acura
$7.72 CAD
$7.72 CAD
23
90139R70A00 - Engine: BOLT, FLANGE (6X20.5) (GUIDE) for Acura Image
Bolt, Flange (6X20.5) (Guide)
90139-R70-A00
Acura Acura
$0.78 CAD
$0.78 CAD
24
90401PR4000 - Engine: WASHER, SEALING (28MM) for Acura Image
Washer, Sealing (28MM)
90401-PR4-000
Acura Acura
$8.73 CAD
$8.73 CAD
25
90401P8AA00 - Engine: WASHER, DRAIN (18MM) for Acura Image
Washer, Drain (18MM)
90401-P8A-A00
Acura Acura
$10.09 CAD
$10.09 CAD
26
90715PH7000 - Engine: PIN, DOWEL (13X37) for Acura Image
Pin, Dowel (13X37)
90715-PH7-000
Acura Acura
View Details
View Details
27
91214RKG003 - Engine: OIL SEAL (80X98X8) (NOK) for Acura Image
Oil Seal (80X98X8) (Nok)
91214-RKG-003
Acura Acura
$43.71 CAD
$43.71 CAD
28
91308P3RT01 - Engine: O-RING (26.2X2.4) (YAMADA SOMBOON) for Acura Image
O-Ring (26.2X2.4) (Yamada Somboon)
91308-P3R-T01
Acura Acura
$7.48 CAD
$7.48 CAD
29
91333PNA003 - Engine: O-RING (15X1.9) for Acura Image
O-Ring (15X1.9)
91333-PNA-003
Acura Acura
$4.87 CAD
$4.87 CAD
30
9410914000 - Engine: WASHER, DRAIN PLUG (14MM) for Acura Image
Washer, Drain Plug (14MM)
94109-14000
Acura Acura
$0.65 CAD
$0.65 CAD
31
9430106100 - Engine: PIN, DOWEL (6X10) for Acura Image
Pin, Dowel (6X10)
94301-06100
Acura Acura
$3.39 CAD
$3.39 CAD
32
9430108140 - Engine: PIN, DOWEL (8X14) for Acura Image
Pin, Dowel (8X14)
94301-08140
Acura Acura
$3.39 CAD
$3.39 CAD
33
957010601405 - Engine: BOLT, FLANGE (6X14) for Acura Image
Bolt, Flange (6X14)
95701-06014-05
Acura Acura
$1.56 CAD
$1.56 CAD
34
957010603208 - Engine: BOLT, FLANGE (6X32) for Acura Image
Bolt, Flange (6X32)
95701-06032-08
Acura Acura
$2.70 CAD
$2.70 CAD
35
957010605008 - Engine: BOLT, FLANGE (6X50) for Acura Image
Bolt, Flange (6X50)
95701-06050-08
Acura Acura
$3.10 CAD
$3.10 CAD
36
958011008508 - Engine: BOLT, FLANGE (10X85) for Acura Image
Bolt, Flange (10X85)
95801-10085-08
Acura Acura
$3.79 CAD
$3.79 CAD
37
958011012008 - Engine: BOLT, FLANGE (10X120) for Acura Image
Bolt, Flange (10X120)
95801-10120-08
Acura Acura
$3.26 CAD
$3.26 CAD
