Rear Differential - Mount for 2013 Acura RDX

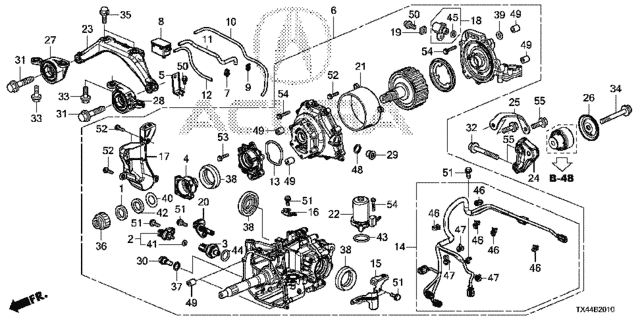

Rear Differential - Mount for 2013 Acura RDX #0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
31
32
33
33
34
35
36
37
38
38
38
39
40
41
42
44
45
46
46
46
46
46
47
47
47
48
49
49
49
49
49
50
50
51
51
51
51
51
52
52
52
53
54
54
54
55
55
No.
Part # / Description / Price
Price
1
23926P24J00 - Chassis: WASHER, SPRING (19MM) for Acura Image
Washer, Spring (19MM)
23926-P24-J00
Acura Acura
View Details
View Details
2
28650RT4003 - Chassis: SENSOR ASSY., TEMPERATURE (ATF) for Acura Image
Sensor Assembly, Temperature (Atf)
28650-RT4-003
Acura Acura
$283.00 CAD
$283.00 CAD
3
37260RNAA01 - Chassis: SENSOR, OIL PRESSURE for Acura Image
Sensor, Oil Pressure
37260-RNA-A01
Acura Acura
$510.44 CAD
$510.44 CAD
4
40441R7L010 - Chassis: FLANGE, COMPANION for Acura Image
Flange, Companion
40441-R7L-010
Acura Acura
$78.23 CAD
$78.23 CAD
5
41171R8D000 - Chassis: STAY, BREATHER BOX for Acura Image
Stay, Breather Box
41171-R8D-000
Acura Acura
$6.22 CAD
$6.22 CAD
6
41200R8D030 - Chassis: CARRIER ASSY., RR. DIFFERENTIAL for Acura Image
Carrier Assembly, Rear Differential
41200-R8D-030
Acura Acura
$6,049.69 CAD
$6,049.69 CAD
7
41932PZP003 - Chassis: CLAMP, BREATHER TUBE (1.0) for Acura Image
Clamp, Breather Tube (1.0)
41932-PZP-003
Acura Acura
$7.79 CAD
$7.79 CAD
8
41935R7L003 - Chassis: BOX, BREATHER TUBE for Acura Image
Box, Breather Tube
41935-R7L-003
Acura Acura
$40.69 CAD
$40.69 CAD
9
41936PDZ003 - Chassis: CLAMP, BREATHER TUBE for Acura Image
Clamp, Breather Tube
41936-PDZ-003
Acura Acura
$6.48 CAD
$6.48 CAD
10
41936R8D000 - Chassis: TUBE, MOTOR BREATHER for Acura Image
Tube, Motor Breather
41936-R8D-000
Acura Acura
$9.25 CAD
$9.25 CAD
11
41937R8D000 - Chassis: TUBE, RR. DIFFERENTIAL DRAIN for Acura Image
Tube, Rear Differential Drain
41937-R8D-000
Acura Acura
$8.56 CAD
$8.56 CAD
12
41938R8D000 - Chassis: TUBE, RR. DIFFERENTIAL BREATHER for Acura Image
Tube, Rear Differential Breather
41938-R8D-000
Acura Acura
$6.63 CAD
$6.63 CAD
13
48143R7L000 - Chassis: GASKET, LUBRICATION PUMP for Acura Image
Gasket, Lubrication Pump
48143-R7L-000
Acura Acura
$25.13 CAD
$25.13 CAD
14
48320R8D000 - Chassis: CABLE SUB-ASSY., RR. DIFFERENTIAL for Acura Image
Cable Sub-Assembly, Rear Differential
48320-R8D-000
Acura Acura
$203.06 CAD
$203.06 CAD
15
48321R7L000 - Chassis: STAY A, RR. DIFFERENTIAL CABLE for Acura Image
Stay A, Rear Differential Cable
48321-R7L-000
Acura Acura
$20.21 CAD
$20.21 CAD
16
48322R8D000 - Chassis: STAY B, RR. DIFFERENTIAL CABLE for Acura Image
Stay B, Rear Differential Cable
48322-R8D-000
Acura Acura
$11.97 CAD
$11.97 CAD
17
48323R7L000 - Chassis: COVER, SENSOR for Acura Image
Cover, Sensor
48323-R7L-000
Acura Acura
$31.12 CAD
$31.12 CAD
18
483505TG003 - Chassis: SOLENOID ASSY. (DENSO) for Acura Image
Solenoid Assembly
48350-5TG-003
Acura Acura
$274.20 CAD
$274.20 CAD
19
48361R7L000 - Chassis: WASHER, SQUARE (16MM) for Acura Image
Washer, Square (16MM)
48361-R7L-000
Acura Acura
$3.74 CAD
$3.74 CAD
20
48370R7L003 - Chassis: CONNECTOR ASSY., SOLENOID for Acura Image
Connector Assembly, Solenoid
48370-R7L-003
Acura Acura
$157.62 CAD
$157.62 CAD
21
48656R7L003 - Chassis: COVER, CLUTCH BAFFLE for Acura Image
Cover, Clutch Baffle
48656-R7L-003
Acura Acura
$42.60 CAD
$42.60 CAD
22
410135TG305 - Chassis: MOTOR ASSY. (MITSUBA) for Acura Image
Motor Kit
41013-5TG-305
Acura Acura
$667.82 CAD
$667.82 CAD
23
50510TX4A01 - Chassis: BRACKET A, DIFFERENTIAL MOUNTING for Acura Image
Bracket A, Differential Mounting
50510-TX4-A01
Acura Acura
$95.26 CAD
$95.26 CAD
24
50520TX4A01 - Chassis: BRACKET B, DIFFERENTIAL MOUNTING for Acura Image
Bracket B, Differential Mounting
50520-TX4-A01
Acura Acura
$53.75 CAD
$53.75 CAD
25
50521TX4A00 - Chassis: STAY, RR. DIFFERENTIAL MOUNTING for Acura Image
Stay, Rear Differential Mounting
50521-TX4-A00
Acura Acura
$59.13 CAD
$59.13 CAD
26
50522TX4A00 - Chassis: PLATE, RR. DIFFERENTIAL MOUNTING for Acura Image
Plate, Rear Differential Mounting
50522-TX4-A00
Acura Acura
$10.14 CAD
$10.14 CAD
27
50710TX4A01 - Chassis: RUBBER, R. RR. DIFFERENTIAL MOUNTING (FR) for Acura Image
Rubber, R Rear Differential Mounting (Front)
50710-TX4-A01
Acura Acura
$204.95 CAD
$204.95 CAD
28
50720TX4A01 - Chassis: RUBBER, L. RR. DIFFERENTIAL MOUNTING (FR) for Acura Image
Rubber, L Rear Differential Mounting (Front)
50720-TX4-A01
Acura Acura
$204.95 CAD
$204.95 CAD
29
90081PWT000 - Chassis: BOLT, DRAIN PLUG (20MM) for Acura Image
Bolt, Drain Plug (20MM)
90081-PWT-000
Acura Acura
$29.42 CAD
$29.42 CAD
30
90081PX4003 - Chassis: BOLT, PLUG (18MM) for Acura Image
Bolt, Plug (18MM)
90081-PX4-003
Acura Acura
$29.34 CAD
$29.34 CAD
31
90163STXA00 - Chassis: BOLT, FLANGE (14X59) for Acura Image
Bolt, Flange (14X59)
90163-STX-A00
Acura Acura
$11.20 CAD
$11.20 CAD
32
90163TA0A00 - Chassis: BOLT, FLANGE (12X75) for Acura Image
Bolt, Flange (12X75)
90163-TA0-A00
Acura Acura
$6.62 CAD
$6.62 CAD
33
90169S3VA00 - Chassis: BOLT, FLANGE (10X31) for Acura Image
Bolt, Flange (12X30)
90169-S3V-A00
Acura Acura
$4.79 CAD
$4.79 CAD
34
90172STKA01 - Chassis: BOLT, FLANGE (14X90) for Acura Image
Bolt, Flange (14X90)
90172-STK-A01
Acura Acura
$15.13 CAD
$15.13 CAD
35
90176SJA000 - Chassis: BOLT, FLANGE (12X50) for Acura Image
Bolt, Flange (12X50)
90176-SJA-000
Acura Acura
$13.15 CAD
$13.15 CAD
36
90201P24J00 - Chassis: NUT, FLANGE (19MM) for Acura Image
Nut, Flange (19MM)
90201-P24-J00
Acura Acura
$23.02 CAD
$23.02 CAD
37
90471PX4000 - Chassis: WASHER, DRAIN PLUG (18MM) for Acura Image
Washer, Drain Plug (18MM)
90471-PX4-000
Acura Acura
$5.66 CAD
$5.66 CAD
38
91201R7L003 - Chassis: OIL SEAL (32X47X8.5) for Acura Image
Oil Seal (32X47X8.5)
91201-R7L-003
Acura Acura
$22.32 CAD
$22.32 CAD
39
91301PC9003 - Chassis: O-RING (7.7X2.3) (ARAI) for Acura Image
O-Ring (7.7X2.3) (Arai)
91301-PC9-003
Acura Acura
$4.84 CAD
$4.84 CAD
40
91303R7L003 - Chassis: O-RING (19.1X2.4) for Acura Image
O-Ring (19.1X2.4)
91303-R7L-003
Acura Acura
$9.87 CAD
$9.87 CAD
41
91303RAY003 - Chassis: O-RING (12X2.4) (NOK) for Acura Image
O-Ring (12X2.4) (Nok)
91303-RAY-003
Acura Acura
$7.31 CAD
$7.31 CAD
42
91304R7L003 - Chassis: RING, BACK-UP (19.5MM) for Acura Image
Ring, Back-Up (19.5MM)
91304-R7L-003
Acura Acura
$6.95 CAD
$6.95 CAD
43
91306R7L003 - Chassis: O-RING (28.4X2.4) for Acura Image
O-Ring (28.4X2.4)
91306-R7L-003
Acura Acura
$10.87 CAD
$10.87 CAD
44
91308R7L003 - Chassis: GASKET, OIL PRESSURE SENSOR for Acura Image
Gasket, Oil Pressure Sensor
91308-R7L-003
Acura Acura
$5.76 CAD
$5.76 CAD
45
91311R7L003 - Chassis: O-RING (8.6X1.9) for Acura Image
O-Ring (8.6X1.9)
91311-R7L-003
Acura Acura
$6.29 CAD
$6.29 CAD
46
91540STK003 - Chassis: CLIP, HARNESS BAND (155.3MM) (BLACK) for Acura Image
Clip, Harness Band (155.3MM) (Black)
91540-STK-003
Acura Acura
$7.05 CAD
$7.05 CAD
47
91542SNA003 - Chassis: CLIP, HARNESS BAND (164.5MM) (DARK BLUE) for Acura Image
Clip, Harness Band (164.5MM) (Dark Blue)
91542-SNA-003
Acura Acura
$0.89 CAD
$0.89 CAD
48
9410920000 - Chassis: WASHER, DRAIN PLUG (20MM) for Acura Image
Washer, Drain Plug (20MM)
94109-20000
Acura Acura
$1.86 CAD
$1.86 CAD
49
9430108100 - Chassis: PIN, DOWEL (8X10) for Acura Image
Pin, Dowel (8X10)
94301-08100
Acura Acura
$3.39 CAD
$3.39 CAD
50
957010601208 - Chassis: BOLT, FLANGE (6X12) for Acura Image
Bolt, Flange (6X12)
95701-06012-08
Acura Acura
$1.84 CAD
$1.84 CAD
51
957010601608 - Chassis: BOLT, FLANGE (6X16) for Acura Image
Bolt, Flange (6X16)
95701-06016-08
Acura Acura
$1.56 CAD
$1.56 CAD
52
957010602208 - Chassis: BOLT, FLANGE (6X22) for Acura Image
Bolt, Flange (6X22)
95701-06022-08
Acura Acura
$1.85 CAD
$1.85 CAD
53
957010602808 - Chassis: BOLT, FLANGE (6X28) for Acura Image
Bolt, Flange (6X28)
95701-06028-08
Acura Acura
$2.74 CAD
$2.74 CAD
54
957010603508 - Chassis: BOLT, FLANGE (6X35) for Acura Image
Bolt, Flange (6X35)
95701-06035-08
Acura Acura
$2.54 CAD
$2.54 CAD
55
957011003008 - Chassis: BOLT, FLANGE (10X30) for Acura Image
Bolt, Flange (10X30)
95701-10030-08
Acura Acura
$3.29 CAD
$3.29 CAD
