Home 2013 Acura ILX Hybrid 1.5L L4 - Electric/Gas Cylinder Block - Oil Pan

My Garage

2013 Acura ILX

Hybrid 1.5L L4 - Electric/Gas

Change Vehicle

Categories

Engine
Engine
Browse Categories

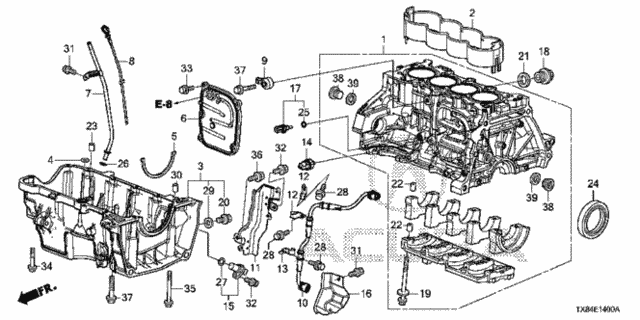

Cylinder Block - Oil Pan for 2013 Acura ILX

Cylinder Block - Oil Pan for 2013 Acura ILX #0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
28
28
28
28
29
29
30
30
31
31
31
31
32
32
32
32
33
33
34
34
35
35
36
36
37
37
37
37
38
38
38
38
39
39
39
39
No.
Part # / Description / Price
Price
1
11000RW0810 - Engine: BLOCK ASSY., CYLINDER (DOT) for Acura Image
Block Assembly, Cylinder (DOT)
11000-RW0-810
Acura Acura
$4,051.67 CAD
$4,051.67 CAD
2
11104RB0J00 - Engine: SPACER, COOLING CONTROL for Acura Image
Spacer, Cooling Control
11104-RB0-J00
Acura Acura
$121.67 CAD
$121.67 CAD
3
11200RW0000 - Engine: PAN ASSY., OIL for Acura Image
Pan Assembly, Oil
11200-RW0-000
Acura Acura
$697.04 CAD
$697.04 CAD
4
11203PWA003 - Engine: O-RING (17.8X2.4) (NOK) for Acura Image
O-Ring (17.8X2.4) (Nok)
11203-PWA-003
Acura Acura
$6.37 CAD
$6.37 CAD
5
11252PWA000 - Engine: GASKET, OIL PAN for Acura Image
Gasket, Oil Pan
11252-PWA-000
Acura Acura
$14.20 CAD
$14.20 CAD
6
11851RW0A00 - Engine: COVER, BREATHER for Acura Image
Cover, Breather
11851-RW0-A00
Acura Acura
$67.38 CAD
$67.38 CAD
7
15200RW0000 - Engine: PIPE, OIL LEVEL for Acura Image
Pipe, Oil Level
15200-RW0-000
Acura Acura
$73.30 CAD
$73.30 CAD
8
15650RW0004 - Engine: DIPSTICK, OIL for Acura Image
Dipstick, Oil
15650-RW0-004
Acura Acura
$21.84 CAD
$21.84 CAD
9
30530R1AA01 - Engine: SENSOR, KNOCK for Acura Image
Sensor, Knock
30530-R1A-A01
Acura Acura
$292.90 CAD
$292.90 CAD
10
32113RBJ010 - Engine: SUB-HARNESS, CRANK SENSOR for Acura Image
Sub-Harness, Crank Sensor
32113-RBJ-010
Acura Acura
$67.06 CAD
$67.06 CAD
11
32742RB0000 - Engine: STAY, CRANK SENSOR HARNESS for Acura Image
Stay, Crank Sensor Harness
32742-RB0-000
Acura Acura
$28.18 CAD
$28.18 CAD
12
32743RB0000 - Engine: CLAMP, CRANK SENSOR HARNESS TUBE for Acura Image
Clamp, Crank Sensor Harness Tube
32743-RB0-000
Acura Acura
$3.34 CAD
$3.34 CAD
13
32743RBJA00 - Engine: CLAMP, CRANK SENSOR HARNESS TUBE for Acura Image
Clamp, Crank Sensor Harness Tube
32743-RBJ-A00
Acura Acura
$6.99 CAD
$6.99 CAD
14
37241RNAA01 - Engine: SWITCH ASSY., OIL PRESSURE (DENSO) for Acura Image
Switch Assembly, Oil Pressure (Denso)
37241-RNA-A01
Acura Acura
$119.32 CAD
$119.32 CAD
15
37500RB0006 - Engine: SENSOR ASSY., CRANK for Acura Image
Sensor Assembly, Crank
37500-RB0-006
Acura Acura
$202.99 CAD
$202.99 CAD
16
37501RSJE00 - Engine: COVER, CRANK SENSOR for Acura Image
Cover, Crank Sensor
37501-RSJ-E00
Acura Acura
$8.07 CAD
$8.07 CAD
17
37700RW0A01 - Engine: SENSOR ASSY., OIL TEMPERATURE for Acura Image
Sensor Assembly, Oil Temperature
37700-RW0-A01
Acura Acura
$203.12 CAD
$203.12 CAD
18
90001PM3003 - Engine: BOLT, DRAIN PLUG (28MM) for Acura Image
Bolt, Drain Plug (28MM)
90001-PM3-003
Acura Acura
$46.16 CAD
$46.16 CAD
19
90008PM0003 - Engine: BOLT-WASHER (10X112) for Acura Image
Bolt-Washer (10X112)
90008-PM0-003
Acura Acura
$18.32 CAD
$18.32 CAD
20
90009R70A00 - Engine: BOLT, PLUG (14MM) for Acura Image
Bolt, Plug (14MM)
90009-R70-A00
Acura Acura
$27.24 CAD
$27.24 CAD
21
90401PR4000 - Engine: WASHER, SEALING (28MM) for Acura Image
Washer, Sealing (28MM)
90401-PR4-000
Acura Acura
$8.73 CAD
$8.73 CAD
22
90702PE0000 - Engine: PIN, DOWEL (12X18) for Acura Image
Pin, Dowel (12X18)
90702-PE0-000
Acura Acura
$6.31 CAD
$6.31 CAD
23
90705PT0000 - Engine: PIN, DOWEL (16X22) for Acura Image
Pin, Dowel (16X22)
90705-PT0-000
Acura Acura
$6.13 CAD
$6.13 CAD
24
91214RB0003 - Engine: OIL SEAL (80X98X10) (NOK) for Acura Image
Oil Seal (80X98X10) (Nok)
91214-RB0-003
Acura Acura
$41.39 CAD
$41.39 CAD
25
91307RW0A01 - Engine: O-RING (9.5X1.9) for Acura Image
O-Ring (9.5X1.9)
91307-RW0-A01
Acura Acura
$5.69 CAD
$5.69 CAD
26
91309PJ7010 - Engine: O-RING (11.5X3.5) for Acura Image
O-Ring (11.5X3.5)
91309-PJ7-010
Acura Acura
$3.83 CAD
$3.83 CAD
27
91333PNC006 - Engine: O-RING for Acura Image
O-Ring
91333-PNC-006
Acura Acura
$4.77 CAD
$4.77 CAD
28
934010501208 - Engine: BOLT-WASHER (5X12) for Acura Image
Bolt-Washer (5X12)
93401-05012-08
Acura Acura
$1.16 CAD
$1.16 CAD
29
9410914000 - Engine: WASHER, DRAIN PLUG (14MM) for Acura Image
Washer, Drain Plug (14MM)
94109-14000
Acura Acura
$0.65 CAD
$0.65 CAD
30
9430112200 - Engine: PIN, DOWEL (12X20) for Acura Image
Pin, Dowel (12X20)
94301-12200
Acura Acura
$3.46 CAD
$3.46 CAD
31
957010601208 - Engine: BOLT, FLANGE (6X12) for Acura Image
Bolt, Flange (6X12)
95701-06012-08
Acura Acura
$1.84 CAD
$1.84 CAD
32
957010601608 - Engine: BOLT, FLANGE (6X16) for Acura Image
Bolt, Flange (6X16)
95701-06016-08
Acura Acura
$1.56 CAD
$1.56 CAD
33
957010601808 - Engine: BOLT, FLANGE (6X18) for Acura Image
Bolt, Flange (6X18)
95701-06018-08
Acura Acura
$1.87 CAD
$1.87 CAD
34
957010603208 - Engine: BOLT, FLANGE (6X32) for Acura Image
Bolt, Flange (6X32)
95701-06032-08
Acura Acura
$2.70 CAD
$2.70 CAD
35
957010607508 - Engine: BOLT, FLANGE (6X75) for Acura Image
Bolt, Flange (6X75)
95701-06075-08
Acura Acura
$2.62 CAD
$2.62 CAD
36
957010802008 - Engine: BOLT, FLANGE (8X20) for Acura Image
Bolt, Flange (8X20)
95701-08020-08
Acura Acura
$1.82 CAD
$1.82 CAD
37
957010803508 - Engine: BOLT, FLANGE (8X35) for Acura Image
Bolt, Flange (8X35)
95701-08035-08
Acura Acura
$2.77 CAD
$2.77 CAD
38
11106PWA300 - Engine: BOLT, SEALING (24MM) for Acura Image
Bolt, Sealing (24MM)
11106-PWA-300
Acura Acura
$13.38 CAD
$13.38 CAD
39
11107PWA300 - Engine: WASHER, SEALING (24MM) for Acura Image
Washer, Sealing (24MM)
11107-PWA-300
Acura Acura
$4.56 CAD
$4.56 CAD
